Primary CO2 Regulator, 160PSI

UBC Group High Pressure Primary CO2 regulator delivers top-tier performance and exceptional build quality, setting a reliable standard for carbonated beverage dispensing.

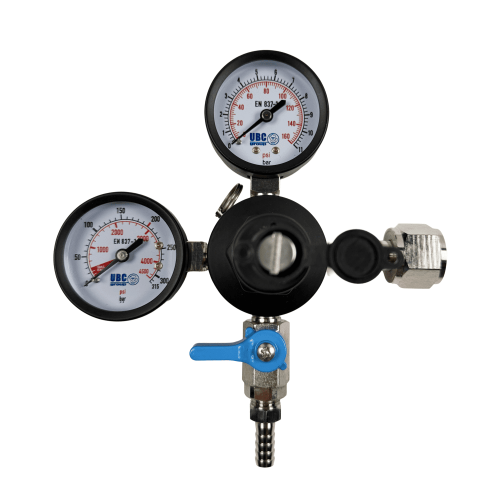

Maintain safe and accurate CO2 flow control with the UBC Group primary high-pressure regulator. It features an output gauge measuring up to 160 PSI—giving you extended flexibility for various beverage styles—alongside a 0–3000 PSI cylinder gauge so you can easily monitor remaining tank pressure.

FEATURES

• Adjustable pressure range: 0 to 160 PSI
• Engineered for maximum durability: forged brass body with precision machining and tin-nickel plating
• High-grade metal gauges built for long-term reliability
• Delivers a steady, continuous pressure supply even at high output flow rates
• Long-lasting, integrated solid nylon inlet seal
• Factory leak-tested under 2900 PSI pressure
• Tamper-evident pressure adjustment screw
• Integrated safety relief valve activates at 150 PSI
• Installation: direct CO2 tank mount (CGA-320 thread connection)
• Outlet Barbs: choice of 5/16" or 3/8" O.D.
• Configuration: 1 Pressure / 1 Product
• Suitable for both home dispense setups and commercial installations

NOTE: This primary CO2 gas regulator steps down high tank pressure into a manageable, safe operating pressure for dispensing. It can power a single-product application directly or feed a series of downstream secondary regulators.

Accurate CO2 regulation is essential for serving great draft beverages: incorrect pressure levels—whether too high or too low—will compromise both the flavor profile and the visual presentation of the drink.
