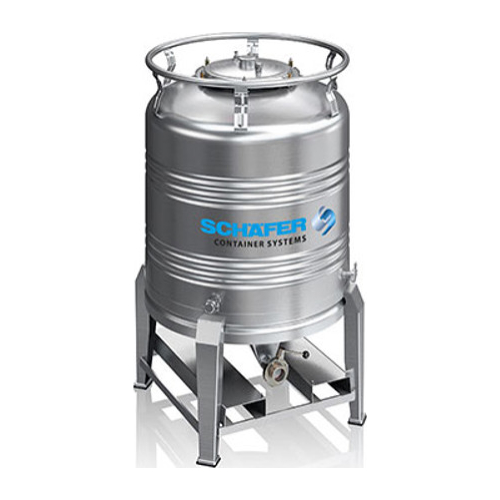

Like Schaefer kegs, all of Schaefer tanks are manufactured using high grade stainless steel. We stock 500L, 800L and 1000L in non-jacketed aseptic tanks with a standard configuration which can be used effectively in most North American breweries, wineries and distilleries. The non-jacketed tanks are the more cost effective option for those environments which do not need to be temperature controlled. They are formed with specially engineered support rings in order to provide added structural stability without the added cost of the stainless steel jacket. Schaefer tanks feature the Tri-Connect Total Drain System which makes both transfer of product and cleaning as easy as possible.
In addition, Schaefer non-jacketed tanks are customizable from the factory and can be used in a wide array of settings.
Please note that our tanks are only safety rated to a pressure of 1 bar or 14.5 PSI.
Special Features:
-Lighter weight
- Cost Effective Option for Non-Temperature Sensitive Environments
- Stackable
- Forklift Channels for Easy Mobility
- Tri-Connect Total Drain System with Top Hatch Configuration
| Spec Sheet – Jacketed Tank Line | ||||||
| Size / Volume | Height (in.) | Diameter (in.) | ||||
| 1000L | 73.74 | 39.37 | ||||
| 800L | 68.62 | 39.37 | ||||
| 500L | 52.64 | 39.37 | ||||
